Product Name：MIO-RING 90° ELBOW

Product Model：

Click Times：651 Times

【Previous】【Next】

Product Details

A/C E-Z CLIP FITTINGS MALE INSERT O-RING 90° ELBOW

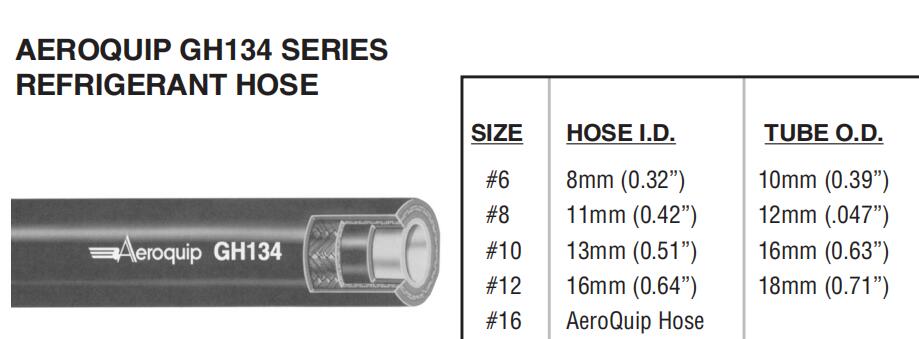

All E-Z Clip Fittings are made to fit the specific E-Z Clip hose -Aeroquip GH134 Series Refrigerant Hose only.

Fittings are supplied with EZ Clips and Attachment Cage.

HOW TO INSTALL:

1.Slide the two clips onto the cut end of the hose

2.Oil the barbed end of the fitting with a generous

amount of the systems A/C compressor oil.

3.Insert the barbed end into the hose.

4.Snap the cage into the groove on the barb.

5.Slide the clips over the cage arms and into the

channels on each arm of the cage

6.Use the connecting tool to close the clips

7.0NLY USE ONE TIME..
