AC BEADLOCKFITTING -MIO- 45°-WENZHOU L&M AC PARTS CO.,LTD

PRODUCTS: ATCO Type Fittings; Burgaflex Type Fittings; Manuly Type Fittings; E-Z Type Fittings; FF AC Hose Fittings; MF AC Fittings; MIO AC Fittings; SB-AC Fittings; BL- AC Fittings; RB- AC Fittings; SR- AC Fittings; Tube-AC Fittings; FOR AC Fittings; MOR AC Fittings; Springlock Fittings; Barb Fittings; Bulkhead Fittings; Splicer-Fittings

Product Name：A/C HOSE FITTINGS MIO-O-RING 45°

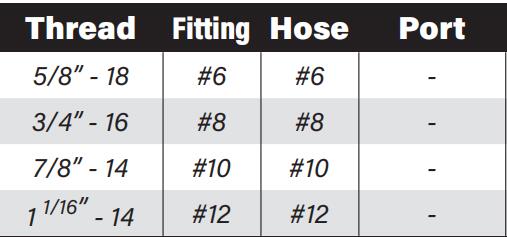

Product Model：#6-6,#8-8,#10-10,#12-12

Click Times：590 Times

【Previous】【Next】

Product Details

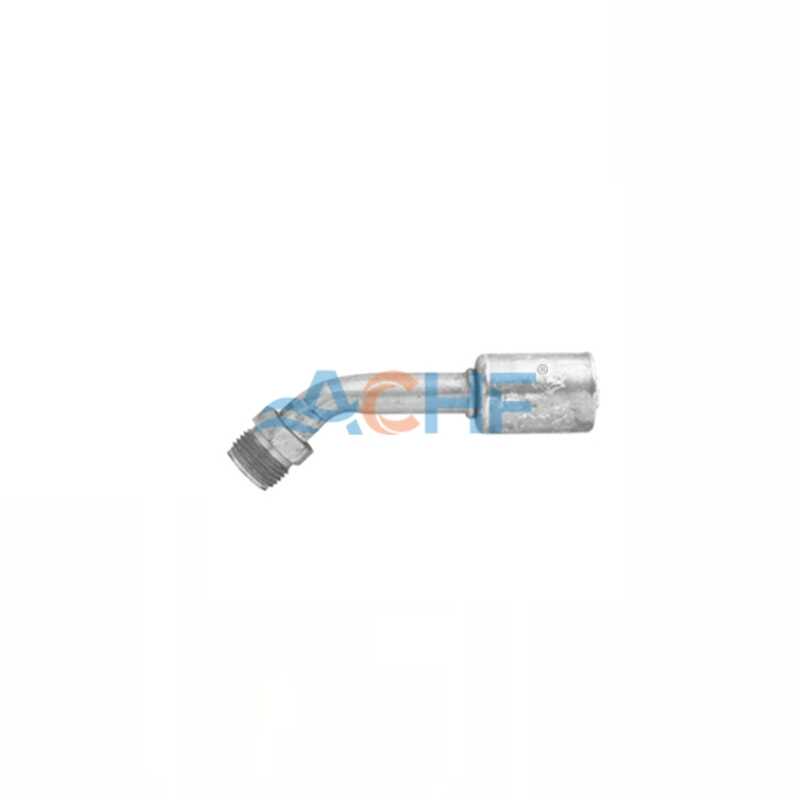

Steel Hose Fittings-MALE INSERT-O-RING 45°

These fittings are attached onto a Goodyear hose using a crimp tool and must match the diameter of the hose used.

1.A/C Beadlock fittings consist of nut ,gap ,seal, ferruler, tube and valve .This kind of fittings are made of steel and AL

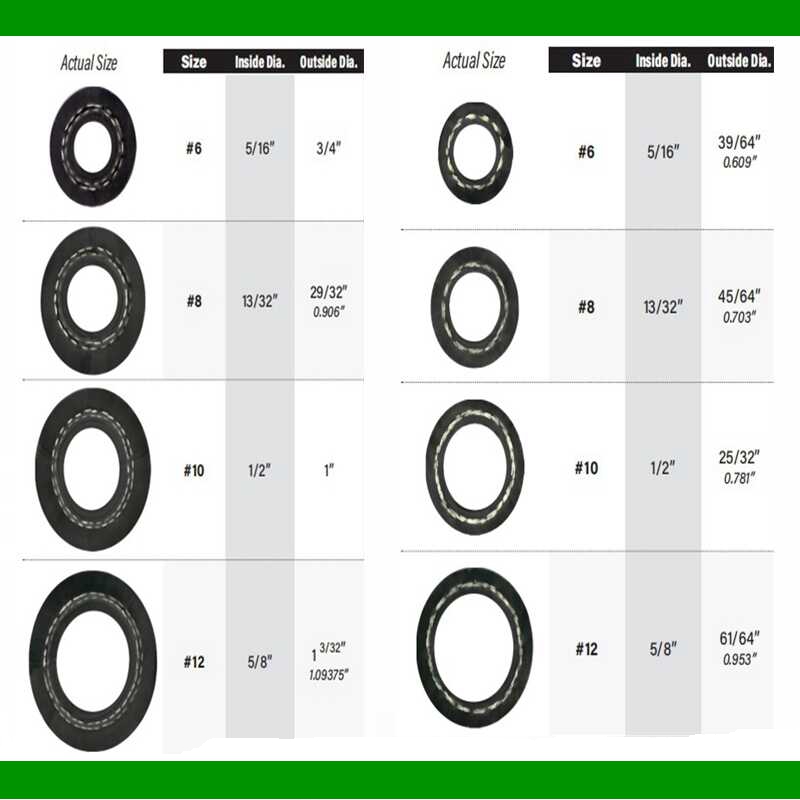

2.using those air conditioning fittings. Firstly, we should consider the hose size, that is very important

standard or reduced diameter of hose. if with the thick hose we will using the SB fittings and BL fittings,

IF with thin hose we should change to the RB and SR fittings type.

3.According to the elbow degree of the fittings ,there are 180 degree,

45 degree and 90 degree, one type size contains #6-6, #8-8, #10-10

4.BEADLOCK FITTINGS used for the bus and automotive car range.
